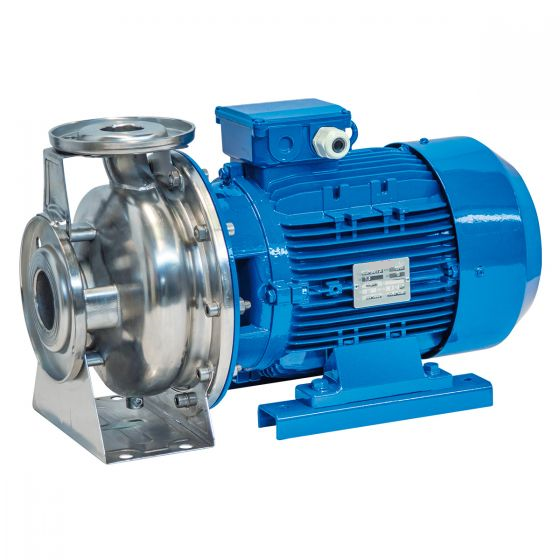

Pumphouse CX50-200/11 3x400V Centrifugal Pump

Pumphouse CX50-200/11 3x400V Centrifugal Pump

1,475.00 exc VAT

The CX Stainless Steel Centrifugal Pump Is Fitted With A Single-Impeller And Is Ideal Suitable For Pumping Clean Water And Other Chemically And Mechanically Non-Aggressive Liquids.

In stock


Pump Specifications

  • Liquid temperature up to 90°C
  • Ambient temperature up to 40°C
  • Total suction lift up to 7 mt.
  • Continuous duty

Motor Specifications

  • Two-Pole induction motor
  • 11KW 3x400V
  • (n = 2850 min-1)
  • Insulation Class F
  • Protection IP 55

Materials of Construction

  • Pump body: Stainless Steel AISI 304
  • Pump flange: Stainless Steel AISI 304
  • Impeller: Stainless Steel AISI 304
  • Shaft with rotor: Stainless Steel AISI 304
  • Mechanical seal: Silicon/Silicon/NBR

Additional information

Weight 103 kg
